C-60S - 1/3" B&W CCD Camera with PIR Sensor

C-60S
1/3" B&W CCD Camera with PIR Sensor
SPECIFICATIONS


ELECTRICAL
Signal Format................................................EIA or CCIR
Image Device..................1/3" Interline Transfer B&W CCD
Picture Elements.....270,000 (EIA) or 290,000 (CCIR) Pixels
Synchronization...........................................Internal Sync
Resolution...................................380 TV Lines (Horizontal)
S/N Ratio..................................More than 48dB (AGC Off)
Minimum Illumination............................................0.1 Lux
Video Out........................75 ohm 1 Vp-p Composite Signal
Audio Input.........................High Sensitivity Condenser Mic
Audio Out............................................600 ohm 50mVrms
Iris..........................................Electronic Auto Iris System
Power Source.......................................................12V DC
Power Consumption..............................................Max 3W

OPTICAL
Lens..........................Focal Length 3.6mm/Aperture F=2.0
Angle of View.............................................Diagonal 92°

MECHANICAL
Dimensions.........................120 (W) x 64 (D) x 85 (H) mm
........................................4.8 (W) x 2.6 (D) x 3.4 (H) inch
Weight..................................................................0.3 kg

GENERAL
Operating Temperature -30°C ~ 60°C (-22°F to 140°F)

ACCESSORIES
Accessories Supplied........................................20m Cable
........................................Mounting Bracket and Screw Kit
Optional Accessorie.s...............Waterproof Extension Cable
FEATURES


GENERAL
The C-60S is a high-performance black & white sensor camera for use in security surveillance applications.

The advanced detection technology and compact, attractive design make the sensor camera ideal for both residential and commercial applications.

Based on PIR technology, the C-60S provides superior catch performance.

The camera has a speaker and a microphone for two-way audio, and theauto iris system of 1/100,000 sec.

The swivel & lock camera head and flatbody allow flexible mounting on walls orin corners for full range of coverage.

The color version is also available.

KEY FEATURES
• Compact design
• Built-in PIR sensor
• Swivel & lock design
• Minimum illumination of 0.1 Lux
• Two-way audio
• More than 380 lines of resolution
• Easy Installation
• Color camera available







CONTROLS



1. Microphone
2. Infrared LED
3. Camera Lens
4. Speaker
5. PIR Sensor
6. Camera Out (mini-DIN)
7. Extra Speaker Terminal		 1. 12V DC
2. Alarm Signal
3. Video
4. N/A (not used)
5. Audio In
6. Audio Out
7. Ground

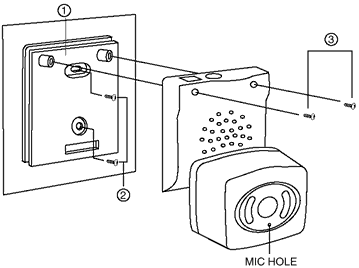

INSTALLATION



1. Fix the bottom case using tapping screws
2. Insert the upper case into the fixed bottom case and secure it with the screws.
    Adjust the camera such that the mic hole is in the position as shown
3. Plug the male mini-DIN connector into the terminal and pull up the cord
    stopper to secure the connector.
4. Adjust the camera to display the desired view and secure it with the screw.



PIR SENSOR DETECTION PATTERNS

SIDE VIEW

TOP VIEW
