Memo Meriton SM10 - B&W Still Image Recorder with Flash Memory

Memo Meriton SM10
B&W Still Image Recorder with Flash Memory
SPECIFICATIONS


ELECTRICAL
Signal Format.............................................EIA or CCIR
Video In/Out..................75 Ohm 1Vp-p Composite Video
Memory..................2MB Flash Memory (100 Frames Max)
Data Compression Format..............................JPEG Basic
Signal Data Format..720 (H) x 480 (V) Pixels/Frame (EIA)
...........................720 (H) x 576 (V) Pixels/Frame (CCIR)
Dwell Time..................1~120 Sec Adjustable (Event Rec)
Power Source....................................................12V DC
Power Consumption...........................................Max 6W

MECHANICAL
Dimensions.......................95 (W) x 55 (D) x 25 (H) mm
.......................................3.7 (W) x 2.2 (D) x 1 (H) inch
Weight...............................................................0.2 kg

GENERAL
Operating Temperature -10°C ~ 50°C (14°F to 122°F)

ACCESSORIES
Accessories Supplied..................12V DC 600mA Adaptor
............................................................mini DIN Cable
Optional Accessories...........................DC/DC Converter
................................................12 V DC Cigarette Cord
FEATURES


GENERAL
The SM-100 is a black & white video memory that records and plays upto 100 frames of still images in JPEG compression format.

The SM-100 offers manual/event/emergency recording and manual/auto/index play. In addition, the video memory provides programmable event recording and pocket save for the overwrite protection of important pictures.

The SM-100 also provides OSD for time & date/index display, video loss detection, and an alarm out for external devices.

By connecting the SM-100 to any PC with capture card, the frames can be viewed and printed from the PC.

KEY FEATURES
• B&W Still Image Recorder with 2MB Flash Memory
• Max 100 Frames
• Manual/Event Recording
• Emergency Recording (Max 80 Frames)
• Manual/Auto/Index Play
• Time & Date Display
• Pocket Save (Max 20 Frames)
• Programmable Event Recording
• Video Signal Loss Detection
• High Quality JPEG Picture
• Alarm Out for External Devices

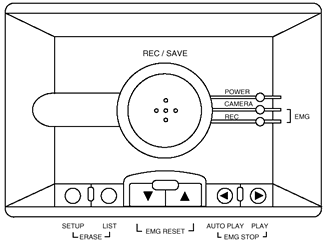

CONTROLS

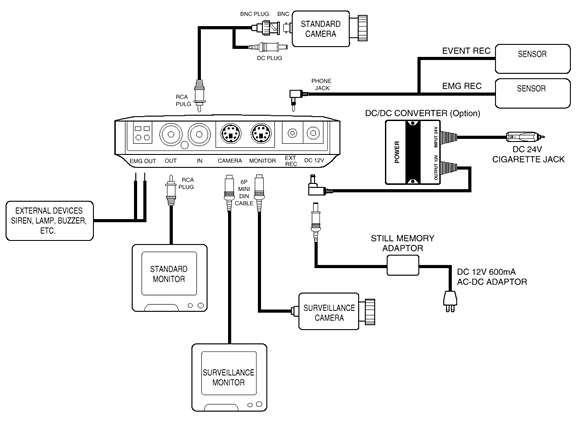

ELECTRICAL CONNECTION
